TurboFils SimpliFil System is an effective syringe filling and assembly system to increase automation and reduce labor. TurboFils Tipfil Technology allows us to  fill the syringes through the “tip” instead of the “tail” which is beneficial for many applications.

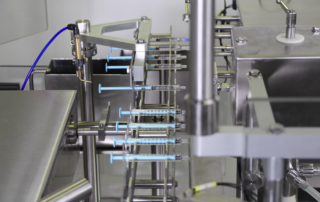

The pre assembled syringes are loaded manually by an operator onto the walking beam, which will index the syringes to the first station where the plungers will automatically be positioned for filling.

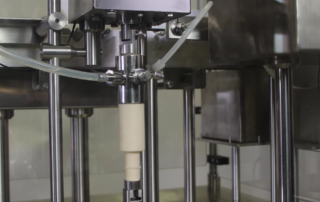

The Syringes can be filled by either direct draw, a peristaltic pump or a piston pump (316L stainless steel, or ceramic), based on product compatibility and customer preference. The syringes will be filled using TurboFils TipFil technology.

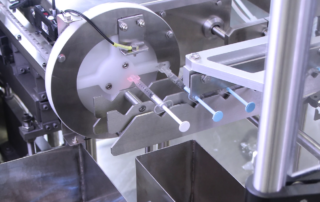

After being filled the syringes will be moved to the next station where the caps will be place automatically  on the tip (nozzle) of the syringe using a stainless steel vibratory bowl feeder, track and placement mechanism. The caps will then be torqued using a servo driven torquer.

After being capped the syringes are inspected for cap placement and missing fill. The syringes that do not pass will be ejected into a reject bin.

The syringes that pass will exit the walking beam and be dropped in a bin.

Because of TurboFil’s deep design expertise, this system can be fully customized to the requirements of your application, including aseptic processing.

Features

  • TurboFil’s walking beam conveyor

  • PLC machine controller (Allen Bradley)

  • Stainless steel vibratory bowl feeders

  • Plunger pullback via servo controlled draw

  • Back check valve for air purge

  • Suck back nozzle design for drip free operation

  • Pneumatically driven syringe support for securing the syringes during the fill cycle

  • Top syringe support

  • Liquid filling accuracy +/- 0.5%

Options

  • RABS (Restricted Access Barrier Systems)

  • IQ/OQ validation package

  • UL508A Certified electrical boxes

  • Advanced data package

  • Ethernet capabilities for remote diagnostics

  • Monitoring and particle counting
